LK2

HDMI 2.0 18Gbps Fiber Extender

LK2 is a HDMI2.0 18Gbps uncompressed fiber optical extender, Support HDCP2.2,

highest resolution 4K@60 4:4:4. It's the perfect solution for smart home audio visual system,

UHD Public video system, outdoor remote transmission and so on.

Features

● Lossless transmission by 4K@60Hz 4:4:4 Dolby Vision

● HDMI2.0, HDCP2.2 compliant

● Highest resolution 4096x2160P@60Hz 4:4:4

● Fiber optical bandwidth 18Gbps

● Dual LC fiber optical connector, dual core fiber transmittion

● Support signal/multi mode fiber, transmit up to 300m with HDCP,

   10km with single mode fiber when there is no HDCP

● Support bi-directioal IR and RS232

● 12V power supply with locker

APPLICATIONS

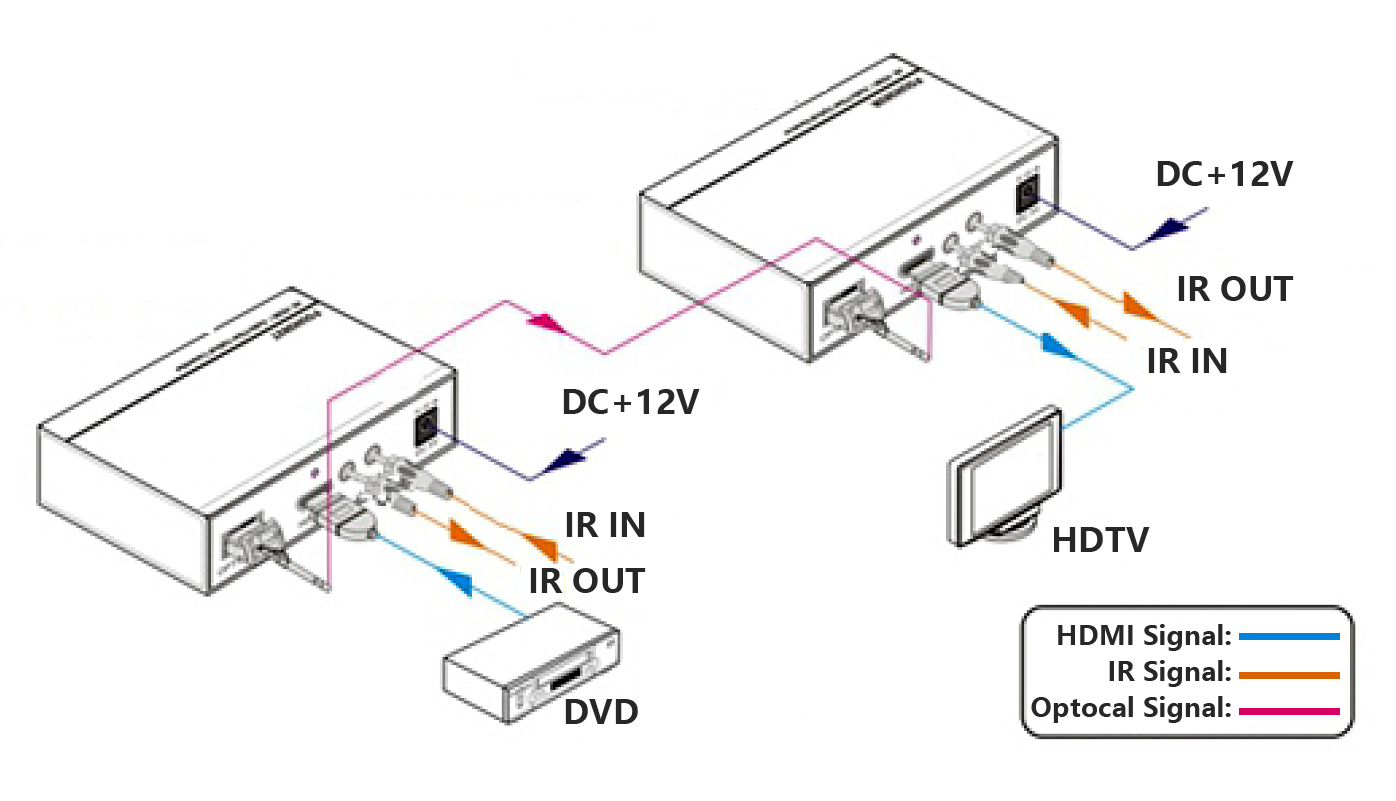

CONNECTION DIRGAM
