LK8-D

Compartir con:

Cat6/6a DVI extender up to 230ft/70m

  • LK8-D
  • SPROLINK
  • S180-LK8-001-01

Introduction

Our HDBaseTTM products offer the very best in performance and flexibility.

LK8-D extender can send DVI, audio, and bi-directional RS232 and IR signals up to 230ft/70m over a single Cat6/6a cable.

It provides an economical and effective way for extending DVI 1920*1080 with embedded multi-channel audio from DVI sources.

In addition, both transmitter and receiver can send power over cable to the other end.

The compact enclosure size and remote power capability make LK8-D ideal for discreet placement behind flat-panel displays, or wherever needed to meet installation requirements.


Features

▪ Proven HDBaseTTM technology offering uncompromised video quality and reliability

▪ Extends 1080P up to 230ft/70m over a single CAT6/6a cable – shielded cable recommended

▪ Supports all industry standard video resolutions

▪ HDCP2.2 compliant

▪ Remote power capability – only one external power supply is needed

▪ EDID and HDCP pass through

▪ CEC pass through

▪ Two-way RS232 and IR communication

▪ Supplied with wideband 30-60KHz infrared cables as full kit


Panel Description

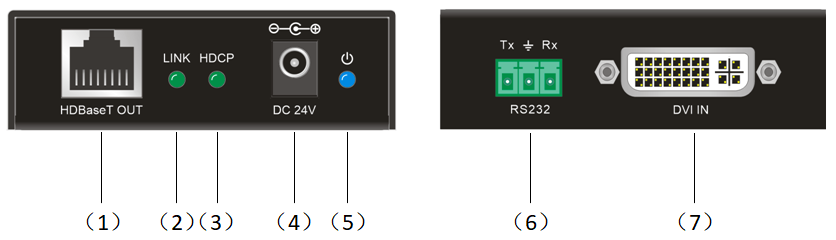

Transmitter


1. HDBT OUT: Connect a cat6/6a cable from here to an LK8-D receiver

2. Link Indicator:

a) Solid green, good signal quality from HDBaseT port;

b) Blink green, HDBaseT port is disconnected or not transmitting signal

c) No light, no signal is being received from the HDBaseT port

3. HDCP Indicator:

a) Solid green, HDBaseT port is transmitting video with HDCP

b) Blink green, HDBaseT port is transmitting video without HDCP

c) No light, no video is being received from the HDBaseT port

4. Power Port: Connect included power adapter here

5. Power Indicator: Solid blue, transmitter is powered on; No light, transmitter is not powered

6. RS232 Port: Connect a serial RS232 signal here

7. DVI IN: Connect an DVI source here ex. Blu-ray player, cable box, etc.

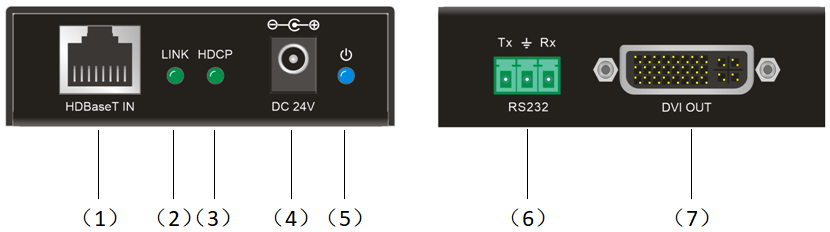

Receiver


1. HDBT IN: Connect a cat6/6a cable from here to an LK8-D transmitter

2. Link Indicator:

a) Solid green, good signal quality from HDBaseT port

b) Blink green, HDBaseT port is disconnected or not transmitting signal

c) No light, no signal is being received from the HDBaseT port

3. HDCP Indicator:

a) Solid green, HDBaseT port is transmitting video with HDCP

b) Blink green, HDBaseT port is transmitting video without HDCP

c) No light, no video is being received from the HDBaseT port

4. Power Port: Connect included power adapter here

5. Power Indicator: Solid blue, transmitter is powered on; No light, transmitter is not powered

6. RS232 Port: Connect a serial RS232 signal for bi-directional RS232 communication

7. DVI OUT: Connect DVI display here

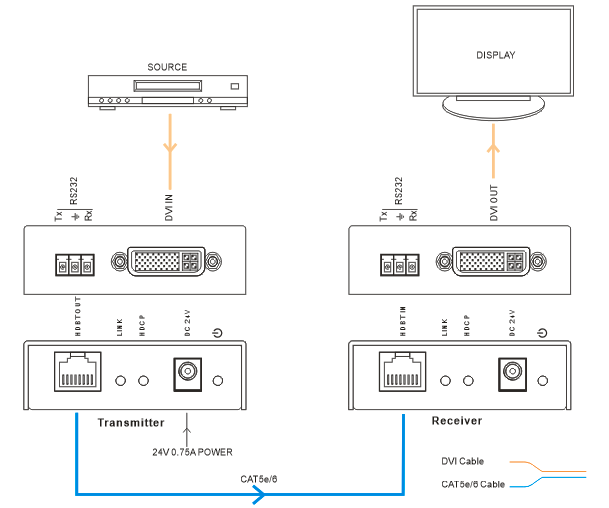

Connection and Installation

Note: When installing extenders, do not install in an enclosed area or cover the vents.

Doing so may result in damage to the product and/or area surrounding it and void the warranty.



Specifications

Video Resolutions

Video

1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i

VESA

2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900,1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768,1024x768, 800x600, 640x480

Color space

YCbCr, RGB

Chroma Subsampling

4:4:4, 4:2:2,

Color Depth

8-bit, 10-bit, 12-bit

Audio

Bit Rate

Up to 24-bit

Distance

Cat5e/6@1080p

Up to 197ft/60m

Cat6a/7@1080p

Up to 230ft/70m

DVI Cable 1080p

Up to 30ft/10m

Signal


Bandwidth

10.2Gbps

CEC

Yes

HDCP

HDCP2.2 compliant

Temperature

Operating

32ºF~122ºF, or 0~50

Storage

-4ºF~140ºF, or -20~60

Humidity

20 ~ 90% non-condensing

Power

Consumption

10.8W for pair

Supply

Input: AC100-240V 50/60Hz, Output: DC240.75A

Other

Dimension HxWxD

118x78x24mm

Weight

300g

Certification

Power supply

CE,  UL, RoHS, CCC

Product

CE, FCC

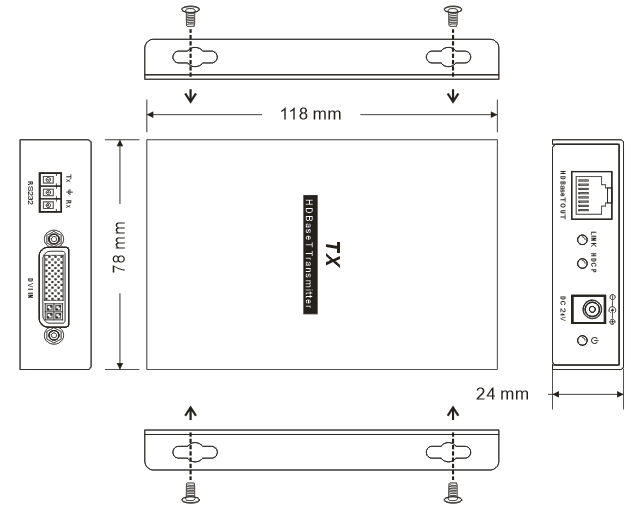

Panel drawing



LK8-D transmitter



LK8-D receiver
