T1

Compartir con:

GoShare
Wireless Content Sharing System

  • T1
  • SPROLINK

T1_Brochure_EN_v1-2


Introduction

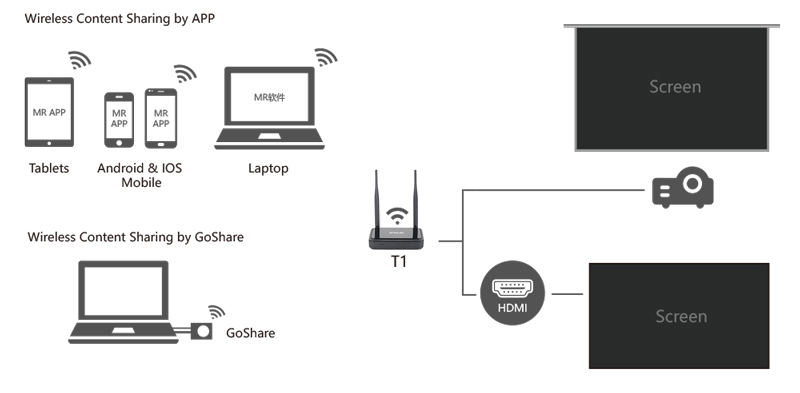

GoShare is the most simple way to connect or participate in a meeting. It allows the users to

share content wireless. GoShare based on Linux system, compared with traditional Android

system,it is with more stability and safety. With default 5GHz transmission, realize less delay signal

transfer. Support Windows, Mac, Android OS, IOS platform and Universal HDMI Source wireless

transmission. No cables, no set-up, no waiting to join in. Perfect for meeting room.


T1_Brochure_EN_v1-3

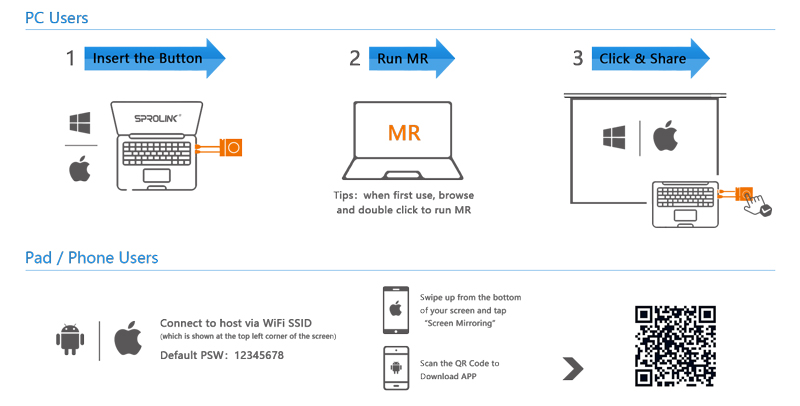

投票操作


T1_Brochure_EN_v1-5


T1_Brochure_EN_v1-6


T1_Brochure_EN_v1-7

Operating System

Windows 7/8.1/10 32bit and 64bitMAC OS X 10.10/10.11/10.12 and upSmart Phone wireless mirrorSupport IOS airplay, iOS9/iOS10/iOS11,OS X 10.10/10.11/10.12 and aboveAndroid 5.0 and above

OutputAudio

1xHDMI,1xAudio analog line out on mini jack socket (3.5mm),

44.1KHz /16bit

Other Port

1x RJ45, 2xUSB

Output Resolution

1920x1200@60Hz

Number of Sources Simultaneous on Screen

1

Number of Simultaneous

Connections

16

Wireless Transmission

Protocol

IEEE 802.11ac/802.11n

Wireless Transmission

Speed

Up to 867Mbps

Wireless Transmission

Distance

max. 30m (100 ft) between Goshare and Base Unit

Frequency band

2.4 GHz and5 GHz (Default)

Anti-theft protocal

WPA2-PSK

Transimission delay

Less than 100mS

Reverse Control

Support mouse reverse control, and 16 point touch reserve control

Power Supply

GoShare Base Unit: 12V/1A,Power Consumption 5W

GoShare Button: 5V/500mA,Power Consumption1.5W

Power Consumption

40W

Temperature

Operating: -5°C to +40°C

Humidity

Storage: 0 to 90% relative humidity, non-condensing

Operation: 0 to 85% relative humidity, non-condensing

Weight

1kg(Device)

Dimension

190mm x 120mm x 30mm (Device)
