Application 1: Customized Input & Output Resolution for Pixel by Pixel Display

VC1 support customized output resolution. Compatible with any LED screen size within 2K.

Use EDID Management to configure input resolution. Realize Pixel by Pixel Display without any stretch or compression.

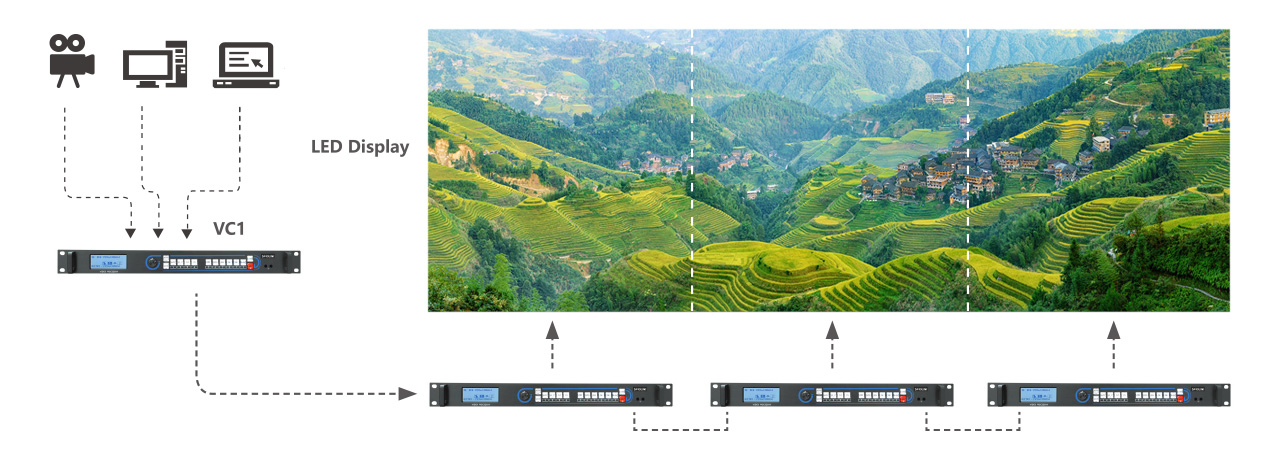

Application2: Flexible Cascade Splicing

VC1 support cascade splicing in any layout. Add one more VC1 as seamless switcher,

realize fade in fade out transition in large scale screen wall.

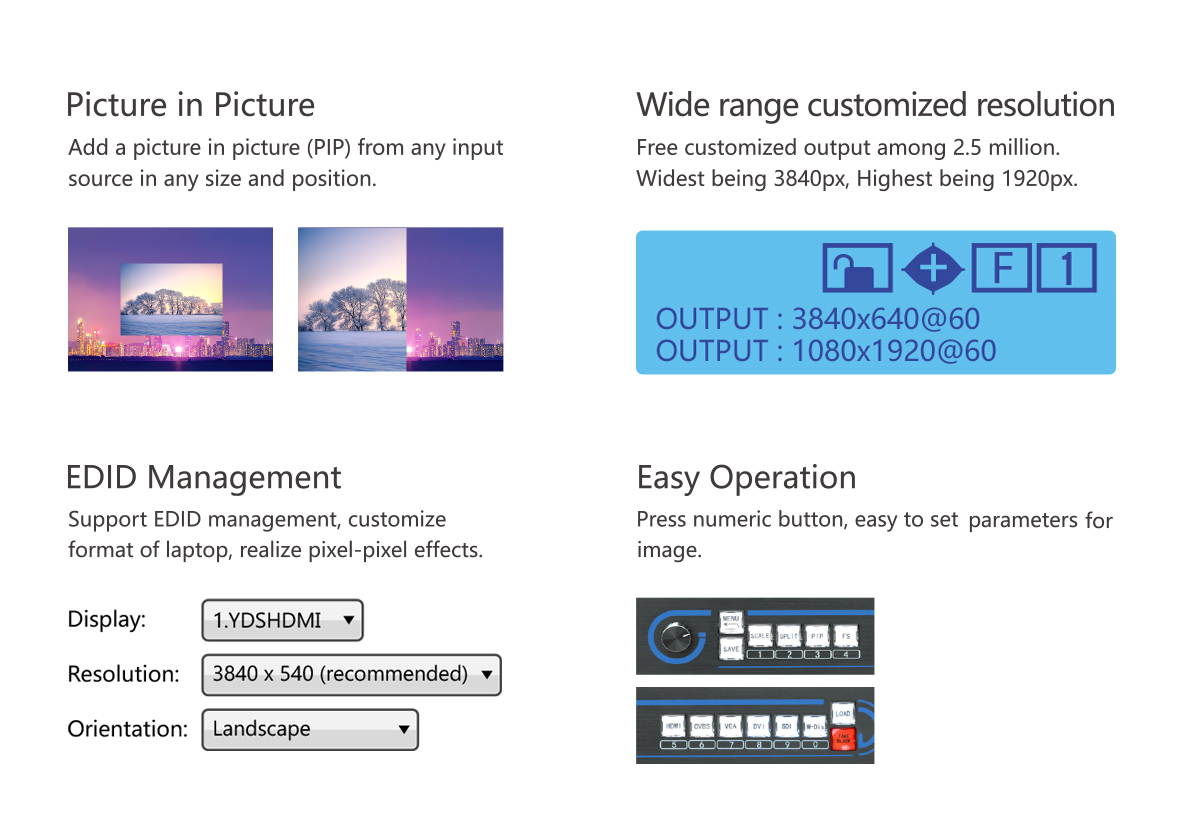

Application3: PIP from any Input Source

VC1 support PIP from any input source in any size and position.

Embedded with several preset layout for multiple configuration.
